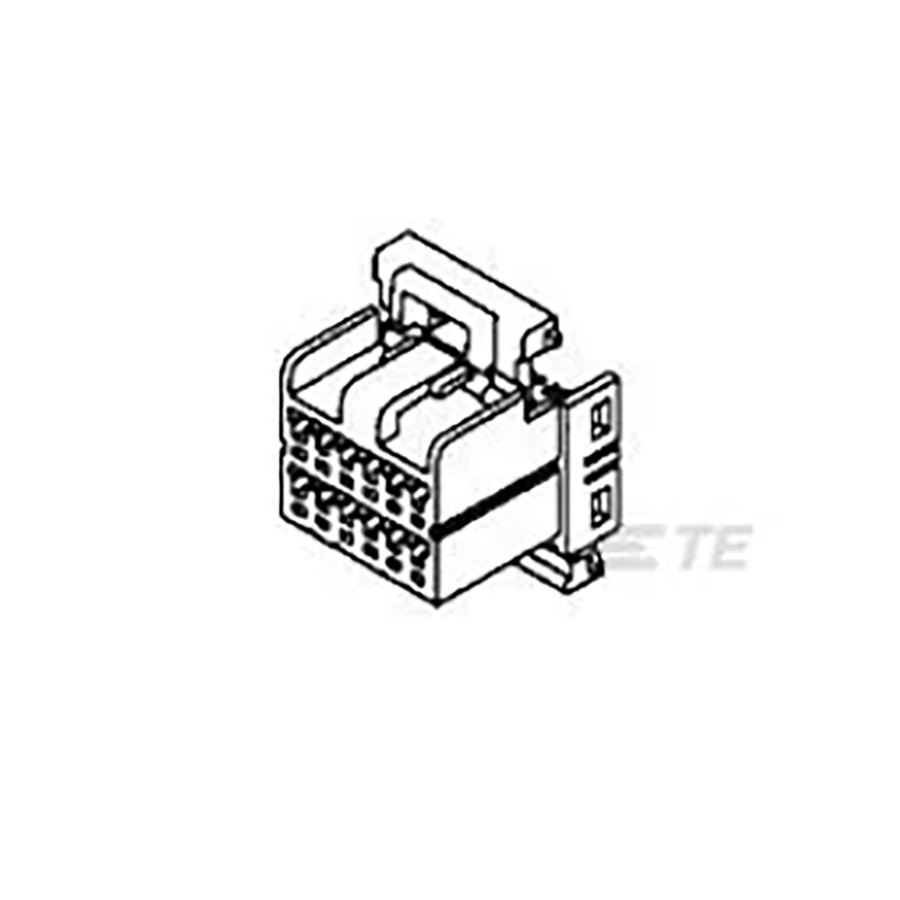

174044-2
Manufacturer:
TE Connectivity
Mfr.Part #:
174044-2
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Plug, Socket Number of Positions:8 Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 18.4912 mm |
| Width | 13.9954 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Height | 18.8976 mm |
| Packaging | Bulk |
| Depth | 18.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 Ω |
| Contact Plating | Tin |
| Pitch | 2.5 mm |
| Current Rating | 8 A |
| Flammability Rating | UL94HB |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 8 |
| ELV | Compliant |
| Body Material | PBT |
| Connector Type | Plug, Socket |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 5.9944 mm |
| Housing Material | Polybutylene |
| Fastening Type | Latch |
| Circuit Application | Signal |
| Housing Color | Black |
| Mating Post Length | 5.84 mm |
| Mating Tab Width | 1 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Polarized | Yes |
| Hybrid Connector | No |
| Serviceable | Yes |
| Termination Post Length | 3.05 mm |
Stock: 124
Distributors
pcbx
pcbxUnit Price$0.17251
Ext.Price$0.17251
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.17251 | $0.17251 |
| 10 | $0.15389 | $1.53890 |
| 50 | $0.13728 | $6.86400 |
| 100 | $0.11717 | $11.71700 |
| 500 | $0.10001 | $50.00500 |
| 1000 | $0.09559 | $95.59000 |
| 3000 | $0.09136 | $274.08000 |
| 5000 | $0.08732 | $436.60000 |
